DIANA GECADO 15 16 LEATHER SEAL ADAPTOR KIT

Description

DIANA GECADO 15 16 LEATHER SEAL ADAPTOR KIT

DIANA MODEL’S 15 16 LEATHER PISTON SEAL ADAPTOR

FITS DIANA + GECADO MODELS 15 16 AND MILBRO G74

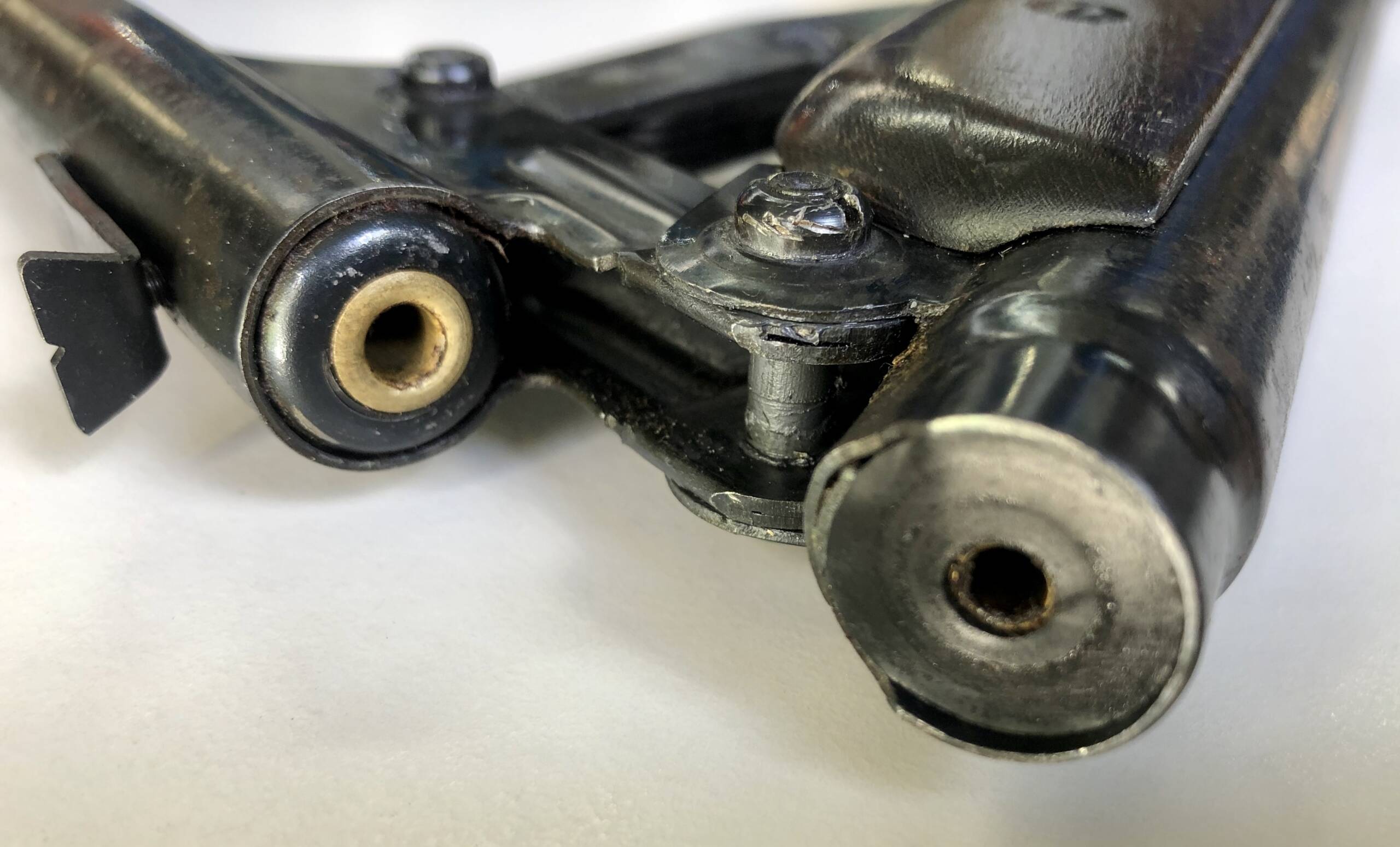

THE DIANA/GECADO MOD 15 AND 16 ARE GREAT LITTLE RIFLES FOR YOUNGER SHOOTERS OR CASUAL PLINKING FUN
THEY CAN NOW BE RE-SEALED AND ENJOYED BY ANOTHER GENERATION

FITS CYLINDERS IN THE 18.5MM TO 18.7MM RANGE THE SEAL IS 18.8MM TOTAL SEALING EDGE

REPLACES THE EXISTING LEATHER PISTON SEAL WITH A NEW RUBBER SEAL

THE EXISTING LEATHER SEAL MAY BE SCREWED OR RIVETED ON
THE RIVET WILL HAVE TO BE CUT OFF BEFORE THE ADAPTOR CAN BE INSTALLED WITH THE INCLUDED SCREW AND BACKING WASHER

ADAPTOR SCREWS ON IN PLACE OF THE OLD LEATHER SEAL PARTS SEE THE LAST PHOTO

THE SEAL JUST CLIPS ON THE THE ADAPTOR ONCE IT’S INSTALLED ON THE PISTON
