DIANA GECADO 22 23 LEATHER SEAL ADAPTOR

$31.95

REPLACES THE OLD LEATHER SEAL WITH A POLY SEAL

Category: Brands: , , , .

Description

DIANA GECADO 22 23 LEATHER SEAL ADAPTOR

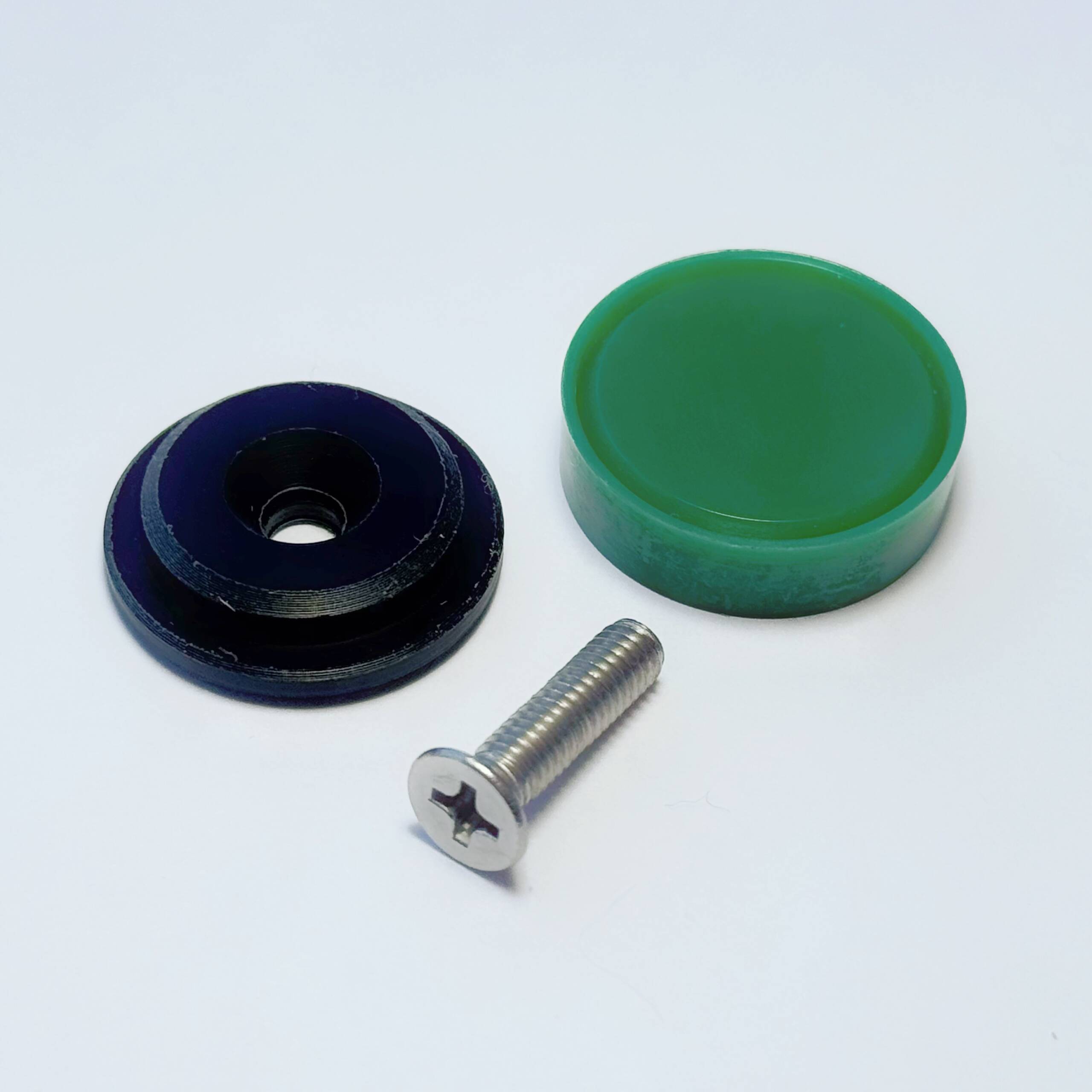

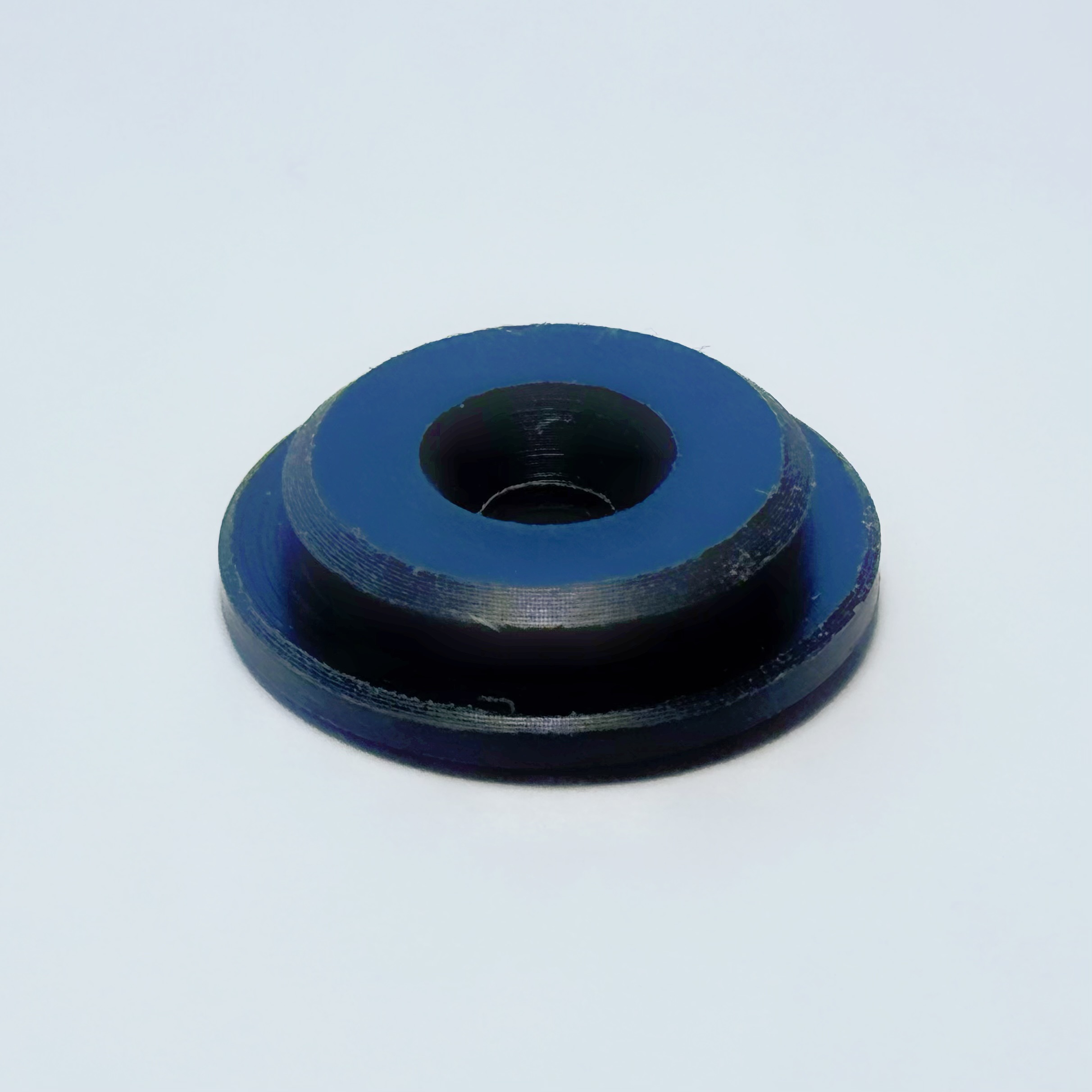

DIANA GECADO MILBRO WINCHESTER 22MM LEATHER SEAL ADAPTOR

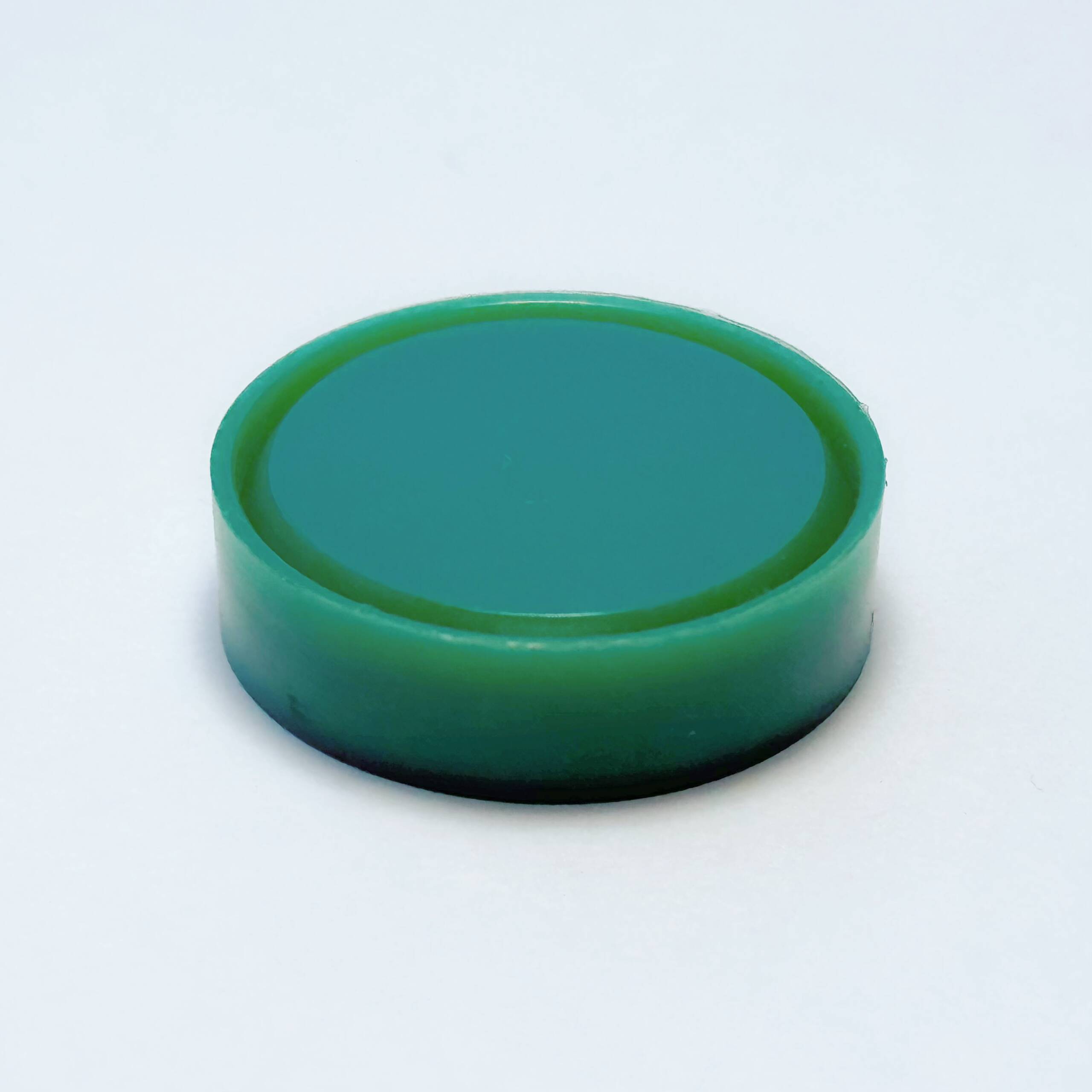

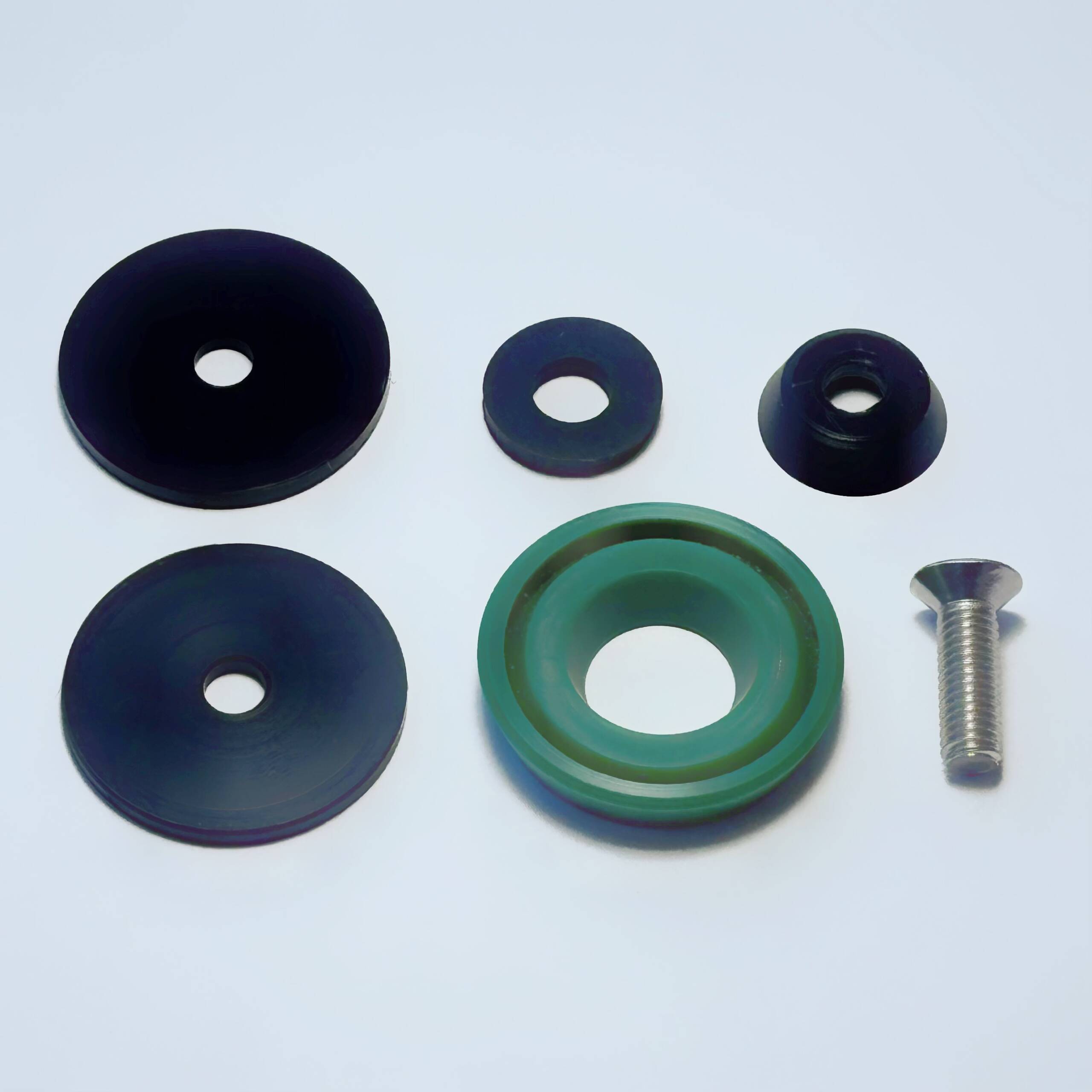

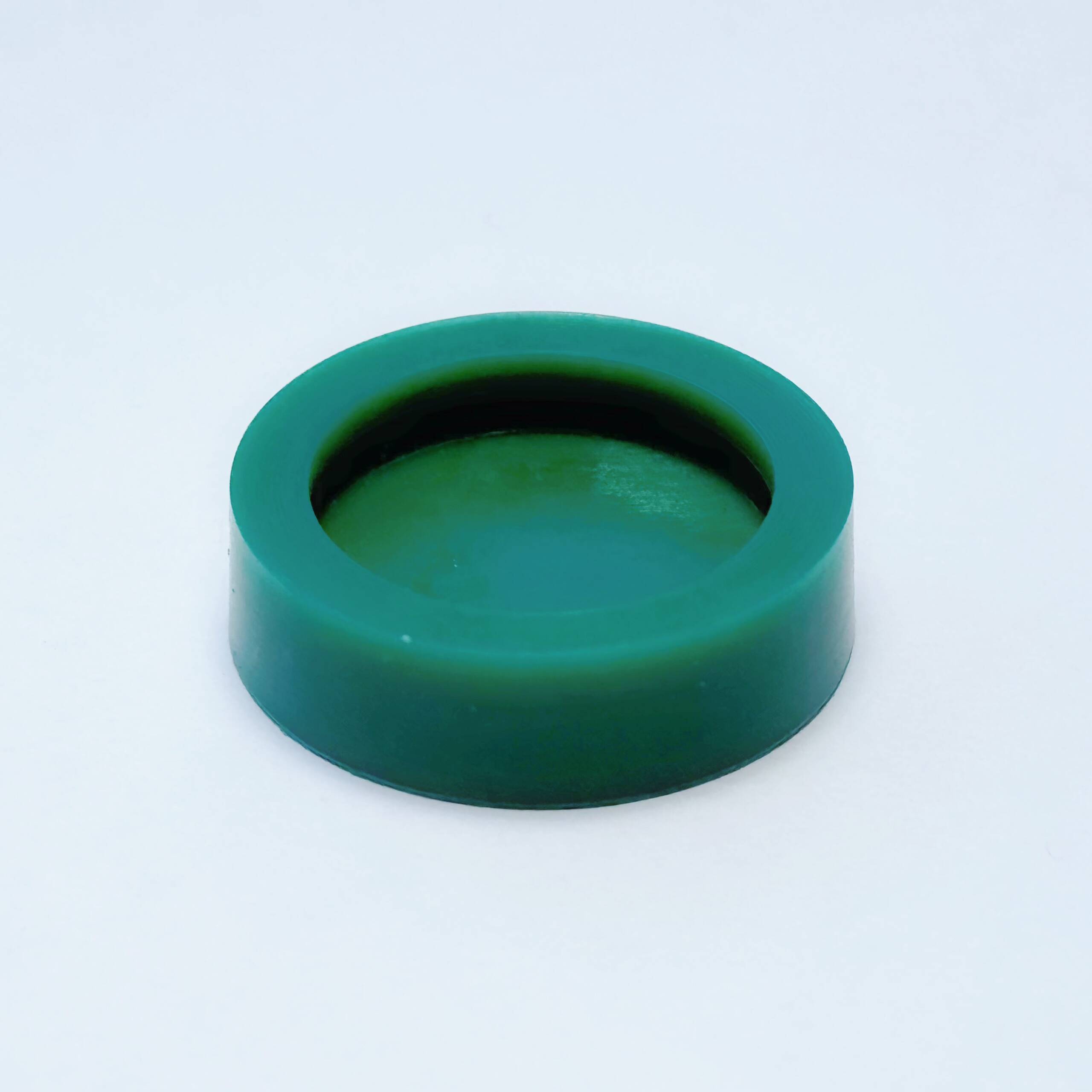

ALLOWS A POLY SEAL TO BE FITTED REPLACING THE OLD LEATHER SEAL (SEE LAST PHOTO)

POLY SEALS ARE MORE RELIABLE LAST LONGER AND DO NOT DRY OUT

FITS THE FOLLOWING:

DIANA GECADO 22 23

WINCHESTER 422 423

MILBRO G22 G23 G75 G76

EVERYTHING REQUIRED IS INCLUDED

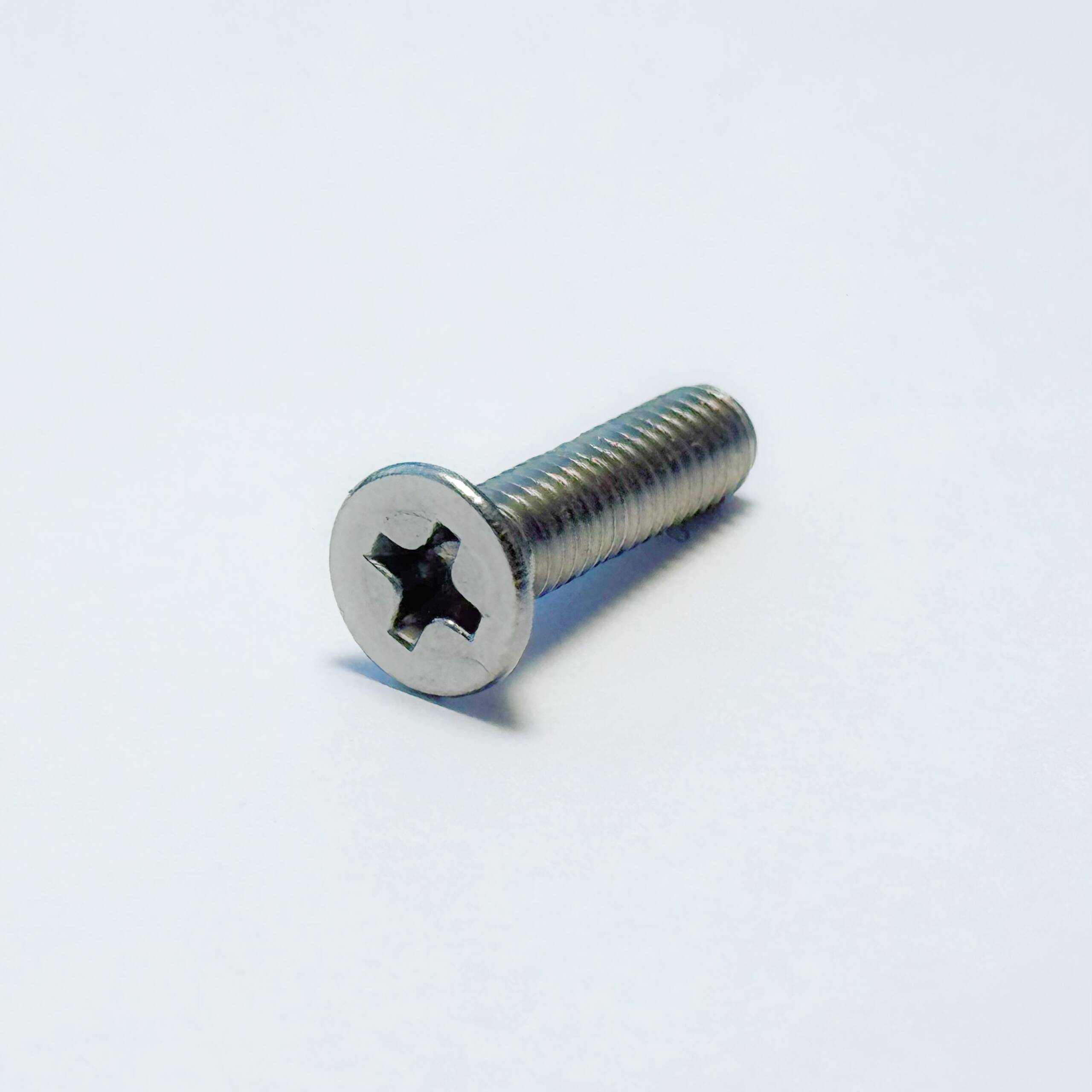

THE EXISTING SCREW ATTACHING THE LEATHER SEAL MAY BREAK OFF WHEN YOU ATTEMPT TO REMOVE IT
IF IT IS HARD TO REMOVE SOAK THE PISTON END IN PENETRATING OIL FIRST THEN REMOVE

IF THE SCREW CAN NOT BE REMOVED OR SNAPS. THE 4MM TREAD MUST BE DRILLED OUT AND TAPPED TO 5MM THE HOLE IN THE ADAPTOR AND THE CHAMFER MUST ALSO BE ENLARGED TO TAKE THE BIGGER 5MM SCREW (NOT INCLUDED)

I ALSO SELL THE BREECH SEAL FOR THE DIANA 22 23 MILBRO WINCHESTER

Additional information

Weight 0.05 kg
