AIR RIFLE SPRING#1 BSA DIANA WEIHRAUCH

$39.99

MADE FROM CHROME SILICON VALVE SPRING WIRE

Description

AIR RIFLE SPRING BSA, DIANA, WEIHRAUCH, AIR ARMS & FWB



MADE FROM CHROME SILICON VALVE SPRING WIRE FOR ENHANCED PERFORMANCE AND LONG OPERATIONAL LIFE

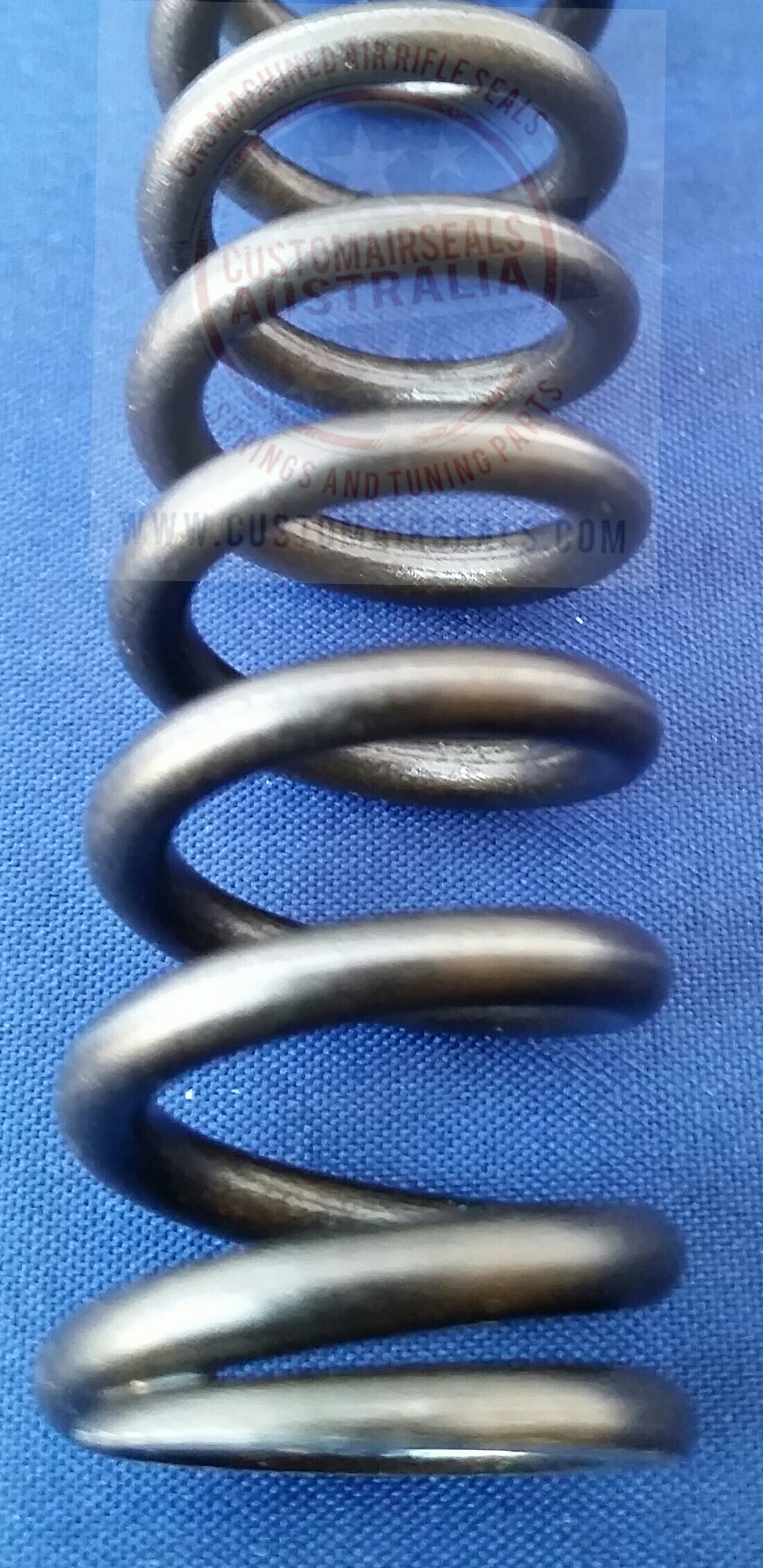

THESE SPRINGS ARE VERY GOOD QUALITY THE PICTURES DO NOT DO THE SPRINGS JUSTICE.
YOU CAN SEE THE WIRE QUALITY AND SURFACE FINISH WHICH IS NOT HIDDEN UNDER A SURFACE COATING

PLEASE MEASURE YOUR EXISTING SPRING FIRST BEFORE ORDERING IF UNSURE

IT WILL ALSO SUIT OTHER RIFLES REQUIRING A SPRING CLOSE TO THE FOLLOWING MEASUREMENTS:

OUTSIDE DIAMETER: 21mm
INSIDE DIAMETER 14.6mm
WIRE THICKNESS 3.2mm
SPRING COILS 29 ACTIVE 31 TOTAL
FREE LENGTH 280mm
SPRING RATE 6.3N/mm or 35LBS/INCH

USE THE SIZES ABOVE TO CHECK THAT THE SPRING WILL FIT INSIDE THE PISTON AND ON THE SPRING GUIDE OF YOUR AIR RIFLE.

VERY CLOSE IN SIZE TO THE TITAN XS No1 SPRING

BSA Airsporter, Mercury, Challenger, 635 Magnum, Supersport, Lightnings, Superstar, Goldstar, Centenary.
Air Arms Firepower, Jackal, Woodsman.
Diana/Gecado Model 34/35/36/38/45/(48/52 Std. power) Weihrauch HW77 HW97 HW99, FWB 124/127

THIS SPRING IS HEAT TREATED STRESS RELIEVED AND SET TO LENGTH

THIS SPRING IS A FULL POWER SPRING





Additional information

Weight 0.16 kg
Dimensions 22 × 32 × 2 cm
